Home > Catalogi > Purgatio instrumenta > Princeps pressura caligarum
Summus pressura caligarum
APPLICANDIS:
Summus pressura rubber exercituum et resinae exercituum late adhibentur pro aqua jetabula, purgatio, et fluida transmissio.
CONTINUUS-SERVITIUM
TEMPERATURA dolor
15°F / 275°F -10°C / 135°C
MAX TEMPERATURA OPERATURA (servitium intermittendi) 300°F 150°C
RECOMMENDED LIQUIDUM:
Aquae, olea mineralia, vegetabilia et rape semina olea, glycol et polyglycol innixa oleis, estens synthetica oleorum fundata, olea in emulsione aquea.
Princeps Pressura Purgamentum Hose
APPLICANDIS:
Summus pressura rubber exercituum et resinae exercituum late adhibentur pro aqua iactura, purgatio et fluida transmissio.
Commendatur Fluidorum:
Aquae, olea mineralia, vegetabilia et rape semina olea, glycol et polyglycol innixa oleis, estens synthetica oleorum fundata, olea in emulsione aquea.
| Parker (USA) princeps pressura caligarum | |||||||||
| Nec. | Exemplar | In.Dia | Out.Dia | Caput Diae | pressura opus | Ruptis Impetus | Min. Flectere Radius mm | Pondus | Decens |
| mm | mm | mm | Bar | Bar | mm | Kg/m | |||
| 1 | HY-120-4P | 4 | 7.7 | 11 | 1200 | 3000 | 75 | 0.1 | M8X1.25 |
| 2 | HY-140-4P | 4 | 10 | 15 | 1400 | 3500 | 55 | 0.16 | 1/4NPT |
| 3 | HY-280-4P | 4 | 12 | 18 | 2800 | 7000 | 140 | 0.29 | 3/8-24UNF-LH |
| 4 | HY-280-5P | 5 | 13.2 | 30 | 2800 | 7000 | 200 | 0.47 | 3/8-24UNF-LH |
| 5 | HY-110-6P | 6.3 | 11.5 | 16 | 1100 | 2750 | 110 | 0.2 | M10X1 |
| 6 | HY-164-6P | 6.3 | 12.5 | 18 | 1640 | 4100 | 155 | 0.33 | 3/8-24UNF-LH |
| 7 | HY-250-8P | 8 | 17.2 | 32 | 2500 | 6250 | 200 | 0.83 | 9/16-18UNF-LH |
| 8 | HY-280-8P | 8 | 17.3 | 32 | 2800 | 7000 | 230 | 0.9 | 9/16-18UNF-LH |
| 9 | HY-160-10P | 10 | 21.6 | 29 | 1600 | 4000 | 95 | 0.94 | M24×1.5FO |
| 10 | HY-110-13P | 13 | 23 | 34 | 1100 | 2750 | 100 | 0.8 | M24×1.5FO |
| 11 | HY-140-13P | 13 | 25 | 34 | 1400 | 3500 | 110 | 1.19 | M24×1.5FO |
| 12 | HY-210-13P | 13 | 26.7 | 36.5 | 2100 | 5250 | 290 | 1.64 | M24×1.5FO |
| 13 | HY-100-20P | 19.6 | 30 | 53.5 | 1000 | 2500 | 250 | 1.39 | M36×2FO |
| 14 | HY-140-20P | 19.6 | 33 | 53.5 | 1400 | 3500 | 350 | 2.1 | M36×2FO |
| 15 | HY-160-20P | 19.8 | 33.7 | 53.5 | 1600 | 4000 | 350 | 2.28 | M36×2FO |

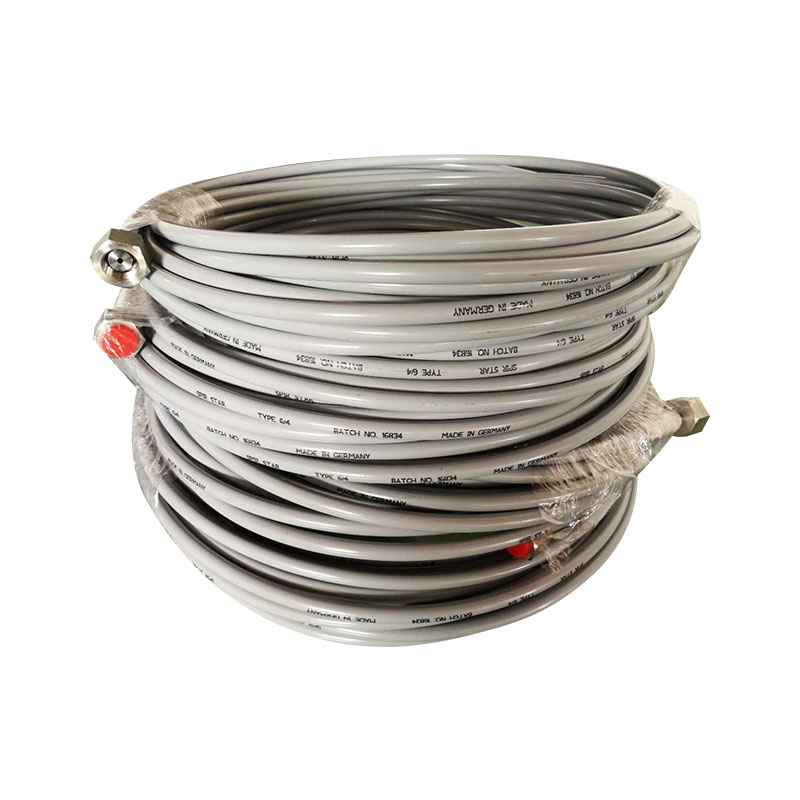

| SPIR STELLA (Germania) summus pressura caligarum | |||||||||
| Nec. | Exemplar | In.Dia | Out.Dia | Caput Diae | pressura opus | Ruptis Impetus | Min. Flectere Radius mm | Pondus | Decens |
| mm | mm | mm | Bar | Bar | mm | Kg/m | |||
| 1 | HY-100-3S | 3.4 | 6.9 | 8.9 | 1000 | 2500 | 60 | 0.072 | M6×1 |
| 2 | HY-120-4S | 4 | 8 | 10.1 | 1200 | 3000 | 75 | 0.11 | M8×1.25 |
| 3 | HY-216-4S | 4 | 10.3 | 14.7 | 2160 | 5400 | 130 | 0.234 | 3/8-24UNF-LH |
| 4 | HY-104-5S | 5 | 9.4 | 12.9 | 1040 | 2600 | 95 | 0.125 | M10×1 |
| 5 | HY-180-5S | 5 | 11.2 | 15 | 1800 | 4500 | 150 | 0.26 | 3/8-24UNF-LH |
| 6 | HY-280-5S | 4.6 | 14.4 | 19.7 | 2800 | 7000 | 220 | 0.563 | 3/8-24UNF-LH |
| 7 | HY-100-6S' | 6.3 | 11.5 | 13.9 | 1000 | 2500 | 110 | 0.175 | M10×1 |
| 8 | HY-084-8S | 8.1 | 13.3 | 17.8 | 840 | 2100 | 130 | 0.2 | 3/8-18NPTF |
| 9 | HY-210-8S | 8 | 16.4 | 21.6 | 2100 | 5250 | 250 | 0.64 | 9/16-18UNF-LH |
| MANULI (ITALIA) summus pressura rubber caligarum | |||||||||
| Nec. | Exemplar | In.Dia | Out.Dia | Caput Diae | pressura opus | Ruptis Impetus | Min. Flectere Radius mm | Pondus | Decens |
| mm | mm | mm | Bar | Bar | mm | Kg/m | |||
| 1 | HY-075-13R | 12.7 | 26.4 | 11 | 750 | 1875 | 220 | 0.905 | M24×1.5 |
| 2 | HY-110-13R | 12.7 | 24.5 | 15 | 1100 | 2750 | 230 | 1.125 | M24×1.5 |
| 3 | HY-125-10R | 10 | 20.4 | 18 | 1250 | 3125 | 230 | 0.815 | M24×1.5 |
| 4 | HY-145-13R | 12.7 | 28.9 | 30 | 1450 | 3625 | 250 | 1.87 | M24×1.5 |
| 5 | HY-135-19R | 19 | 35.4 | 16 | 1350 | 3375 | 280 | 2.57 | M36×2 |
