Home > Catalogi > Purgatio instrumenta > Superficiem purgatio nozzles
Commodum technologicum
1. AESTUARIUM diversitate COLLUM, ictus effectus augetur 30%, et foraminis reparari potest
2. Aquae superficiei uredine et aquae jet omnibus idoneis purgatio
3. Celeritas Novifacta post preheating, celeritas range (680-2000/rpm)
4. Nulla aqua Leakage jet sigillum in gyrum, usque ad effectum C% jet
5. Iniectio vibrationis humilis, strepitus humilis, sine aere, potentia externa
6. Collum tutelae laminae restitui potest, et caput COLLUM laedi non potest
7. facile servari potest, sigillum repositum temporis tantum 3 minutae
9. obtinere potest qualitatem superficiei Sa2.0 et Sa2.5 in efficiendo praetractatione
Applicationem
1. removere a magnus pipeline coating
2. superficies concreta inspiratione
3. cratem purgans in auto officinas
4. Planta chemica obterere superficiem descendentis
Ferri structura aqua uredine, fuco remotionem, rubigo remotionem
6. Navis rubigo carinae ac remotionem pingunt
| Model | Pressura | Influunt rate | Speedrpm | Pondus | Diamension | COLLUM qty | Portus magnitudine |
| HY-100 | 1000 bar | 14~30 L/M | 680-2000 | 1.5 KG | L=220mm φ75mm | 2-6 | 9/16UNF-18 |
| HY-150 | 1500 bar | 14~30 L/M | 680-2000 | 1.5 KG | L=220mm φ75mm | 2-6 | 9/16UNF-18 |
| HY-280 | 2800 bar | 14~30 L/M | 680-2000 | 1.5 KG | L=220mm φ75mm | 2-6 | 9/16UNF-18 |

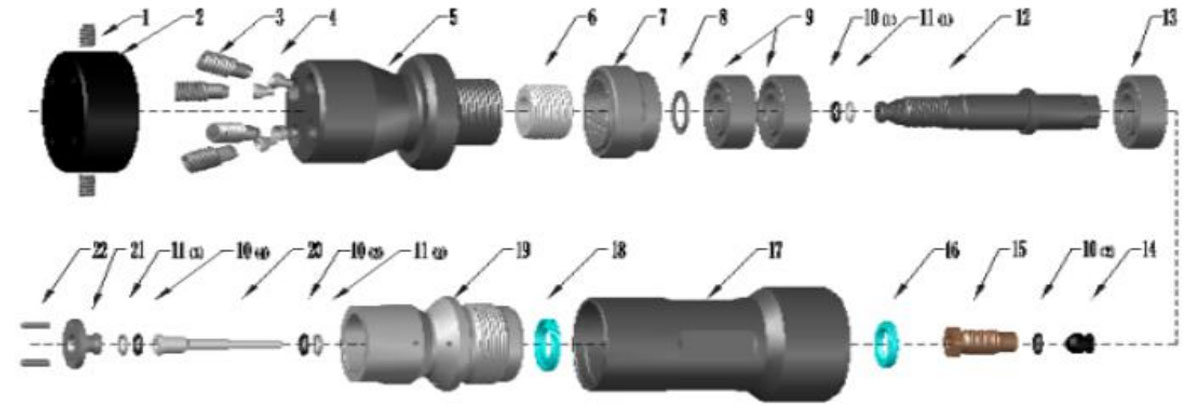

| Descriptio | Qt'y | drawing No | Descriptio | Qt'y | drawing No |
| M5 vertice filamentum | 2 | HY-F30U-1 | O anulum | 1 | HY-F30U-10(2) |
| Protective cover | 1 | HY-F30U-2 | cavum nut | 1 | HY-F30U-15 |
| M10 Gemstone | 4 | HY-F30U-3 | Oleum sigillum (pro testa) | 1 | HY-F30U-16 |
| M10 Gemstone COLLUM ferro pad | 4 | HY-F30U-4 | Out cover | 1 | HY-F30U-17 |
| Swivel caput | 1 | HY-F30U-5 | Oleum sigillum | 1 | HY-F30U-18 |
| Caput core rotating | 1 | HY-F30U-6 | Inlet nexu | 1 | HY-F30U-19 |
| Magnetica ecclesia | 1 | HY-F30U-7 | O anulum | 1 | HY-F30U-10(2) |
| Hastile elasticum annulum | 1 | HY-F30U-8 | O anulum | 1 | HY-F30U-10(3) |
| Contactus angularis afferens 7003 | 2 | HY-F30U-9 | signantes virga | 1 | HY-F30U-20 |
| O anulum | 1 | HY-F30U-10(1) | O anulum | 1 | HY-F30U-10(4) |
| O anulum | 1 | HY-F30U-11(1) | O anulum | 1 | HY-F30U-11(3) |
| rotationis axis | 1 | HY-F30U-12 | Aliquam ferro sigillum obstructionum | 1 | HY-F30U-21 |
| Ball ferre 6003 | 1 | HY-F30U-13 | 3×10 recta pin | 2 | HY-F30U-22 |
| Princeps pressura sigillum | 1 | HY-F30U-14 |
